T-1 ¾ (5 mm) Dual Polarity Domed LED Midget Flange Lamps
NVG Compatible & NVIS Compliant per MIL-L-85762A and MIL-STD-3009
MAIN FEATURES
- Dimensionally compatible with MS25237 (327 and 328 type lamps) and MIL/L/6363/8.
- Low power consumption.
- Shock and vibration resistant.
- Built-in, current-limiting resistor.
- Dual polarity circuitry.
Add -E for 28V Exponential Dimming Option to Approximate Incandescent Dimming

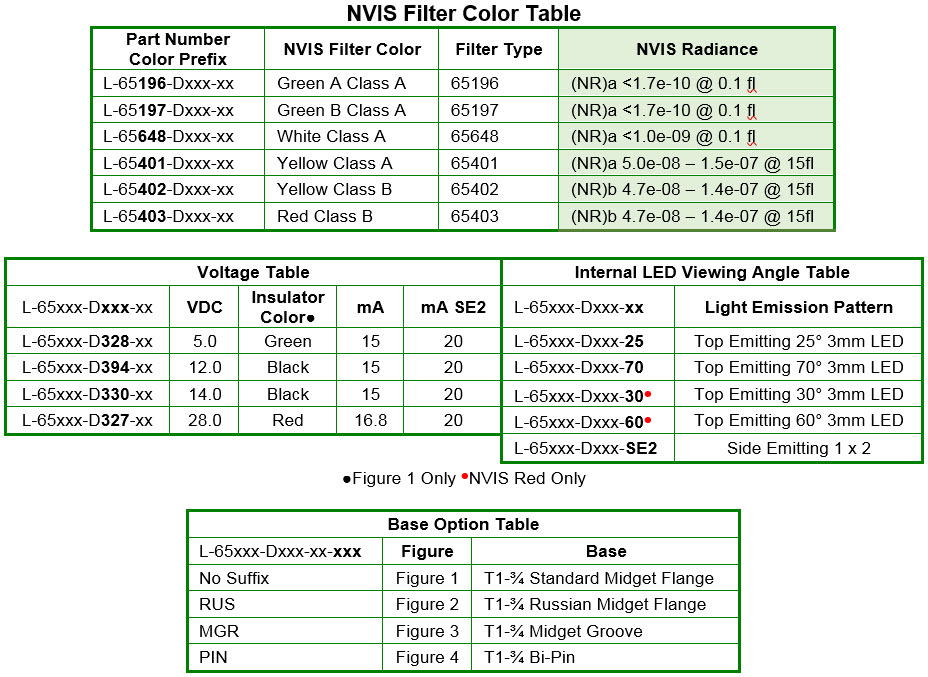

Ordering Information
L-65196-D327-25 (Figure 1) is a 28V T-1 ¾ NVIS Green A Class A, 25° Top Emitting LED Midget Flange Dome Lamp.
Figure 1 and 3 only, add “-NM” for non-magnetic midget flange base L-65196-D327-25-NM.
L-65196-D327-25-RUS (Figure 2) is a 28V T-1 ¾ NVIS Green A Class A, 25° Top Emitting LED Russian Midget Flange Lamp.
L-65196-D327-25-MGR (Figure 3) is a 28V T-1 ¾ NVIS Green A Class A, 25° Top Emitting LED Midget Groove Lamp.
L-65196-D327-25-PIN (Figure 4) is a 28V T-1 ¾ NVIS Green A Class A, 25° Top Emitting LED Bi-Pin Lamp.
