MLS470 Watertight Panel Lights for Rugged Environments

NVG Compatible & NVIS Compliant MIL-L-85762A and MIL-STD-3009 Type Colors

Instrument and Panel Lighting SAE-AS25050 Type Colors


  • Watertight assembly – environmentally sealed.
  • Complete with O-ring and mounting hardware.

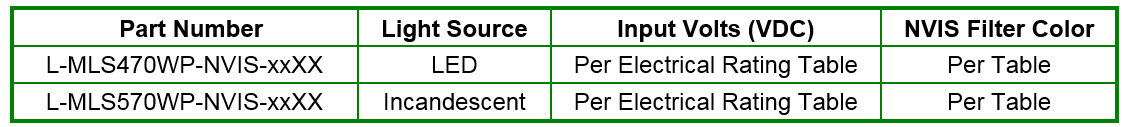

Ordering Information

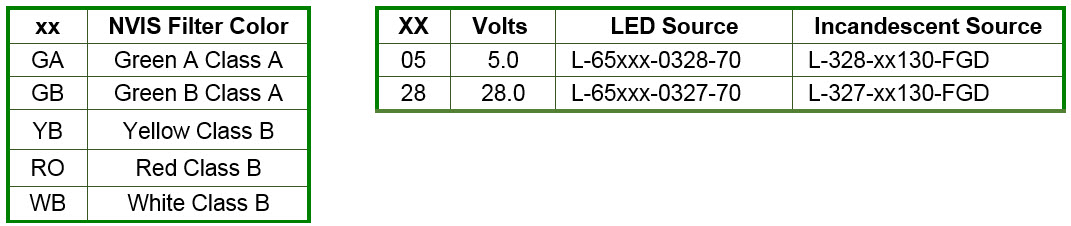

The lower case xx in the suffix designates the NVIS Color per the NVIS Color Table.

The upper case XX in the suffix designates the voltage per the Electrical Rating Table.

Example: L-MLS470WP-NVIS-GA28 is a panel light using an LED Light Source, 28V, NVIS Green A.

Lighting...Your Way!

Call 908.508.9100 or email us at with your product questions or to place an order.
