MS25041 Press-to-Test Panel Light Indicators
NVG Compatible & NVIS Compliant per MIL-85762A and MIL-STD-3009
MAIN FEATURES
Dimensionally and functionally compliant to MS25041
Watertight assembly – environmentally sealed
Solid-State or Incandescent
Three connector lugs for OFF, ON, and PRESS TO TEST modes

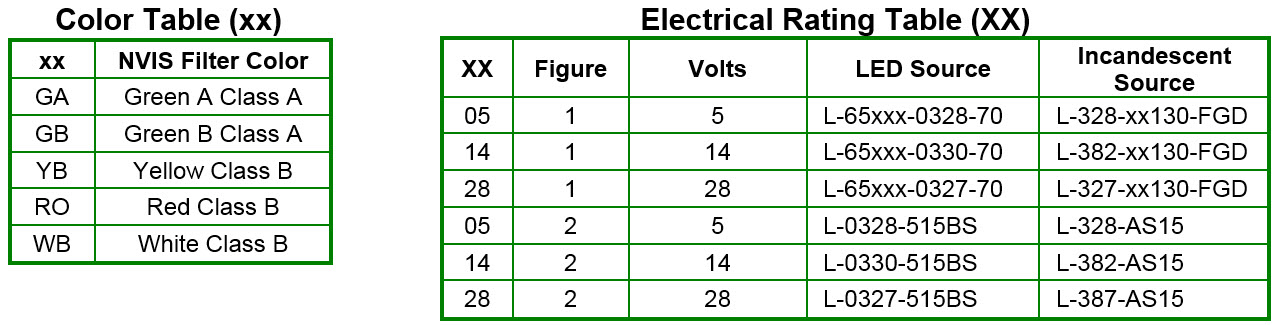

ORDERING INFORMATION
Figure 1: Clear Lens cap, Internal NVIS Lamp. For Clear Cap and NVIS lamp only, omit the first five characters after L- in prefix: L-41L-NVIS-xxXX
Figure 2: NVIS Lens cap, internal Non-NVIS Lamp. For NVIS Cap and lamp only, omit the first five characters after L- in prefix:
L-51L-NVG-xx05 (L-0328-515BS LED lamp included)
L-51SL-NVG-xx05 (L-328-AS15 Incandescent lamp included)
