5 mm (T-1 3/4) NVIS Thru-Hole LED Lamps

MAIN FEATURES

  • Night Vision Goggle display compatibility per MIL-L-85762A and MIL-STD-3009
  • Compact and light sealed – 25° or 60° viewing angle
  • Flying lead version available with integrated current limiting resistors for operation under various voltages
  • Dimensionally compatible with most standard 5 mm thru-hole LEDs.
Thru-Hole NVIS

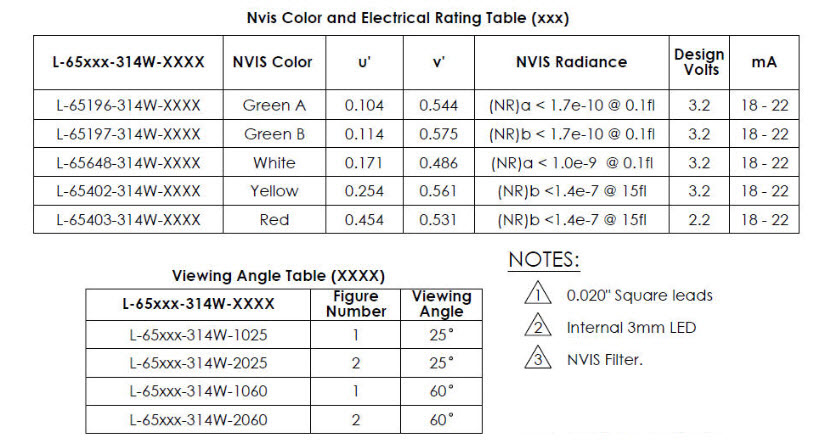

Ordering Information

Drawing configuration and viewing angle are called out by adding the appropriate suffix code. For example: L-65196-314W-1025 is an NVIS Green A assembly with a 25° viewing angle and is constructed per Figure 1.
