500 Series T-1 & 3/4 Midget Flange LED Lamps

Dual Polarity Operation at Common Voltages – Ruggedized – Salt Spray and Water Resistant

MAIN FEATURES

  • Dimensionally compatible with MIL-DTL-6363/8 (MS25237-327, 387, 328, 8918)
  • Drop-in replacement for incandescent lamps used in backlit switches, push buttons, annunciators, and displays
  • Proprietary internal circuitry to match the exponential shape of an incandescent dimming curve (-E Option)
  • Top emitting light output with minimal heat generation
  • Long life, low power consumption, and cost effective
  • Shock and vibration resistant

Add -E for 28V Exponential Dimming Option to Approximate Incandescent Dimming

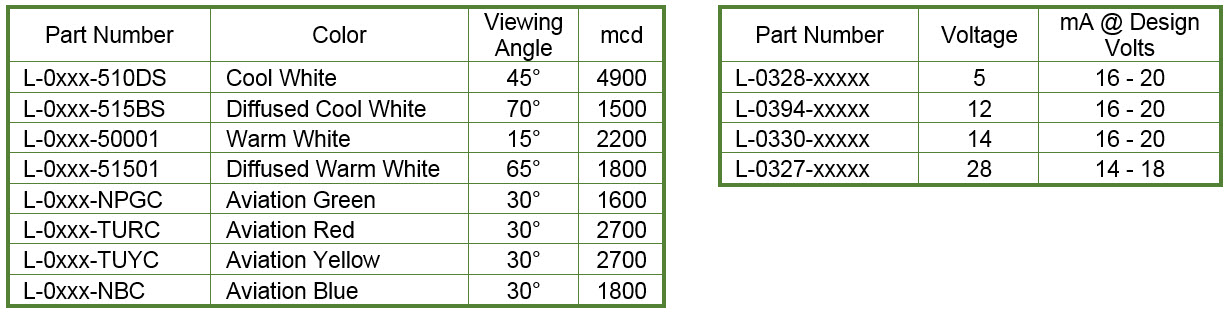

Base Options:  Select alternate base option by adding appropriate suffix to part number.  RUS = Russian Midget Flange, MGR = Midget Groove, PIN = Bi-Pin.   Example: L-0328-510DS-PIN

Lighting...Your Way!

Call 908.508.9100 or email us at sales@lumitron.com with your product questions or to place an order.
