T-3 1/4 Miniature Bayonet (BA9s)
NVIS PolyVision Incandescent Lamp

MAIN FEATURES
- Display compliance per MIL-L-85762A and MIL-STD-3009
- Dimensionally compatible with MS15571 and MIL-DTL-6363/9
- Operates and dims using standard circuitry
- Drop in replacement for T3 ¼ Single Bayonet Type Incandescent Lamps

Application Notes

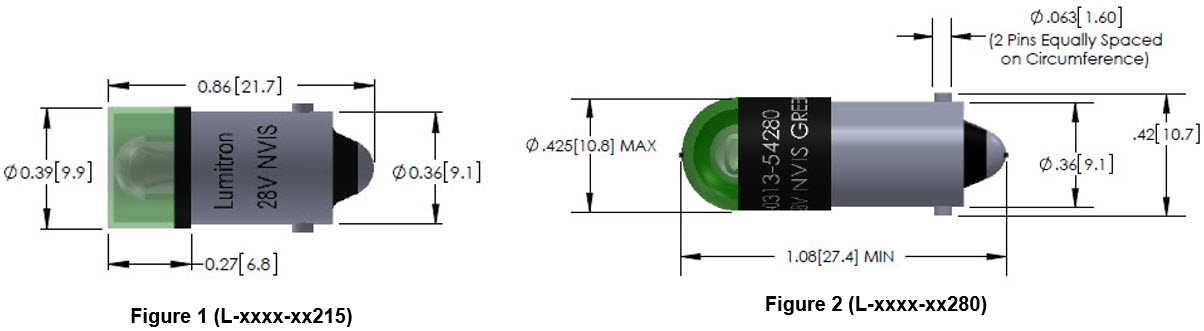

Dimensions are in inches (mm).
PolyVision optical filters are subject to the following thermal constraints:
1. Intermittent Use Temperature: 190C
2. Extended Use Temperature: 120C
Lighting...Your Way!
Call 908.508.9100 or email us at sales@lumitron.com with your product questions or to place an order.
