T-1 ¾ (5 mm) Dual Polarity LED Midget Flange Lamps

NVG Compliant & NVIS Compatible per MIL-L-85762A and MIL-STD-3009

MAIN FEATURES

  • Dimensionally compatible with MS25237 (327 and 328 type lamps) and MIL/L/6363/8.
  • Available in both top and side light emitting configurations.
  • Low power consumption.
  • Shock and vibration resistant.
  • Built-in, current-limiting resistor.
  • Dual polarity circuitry.

Add -E for 28V Exponential Dimming Option to Approximate Incandescent Dimming

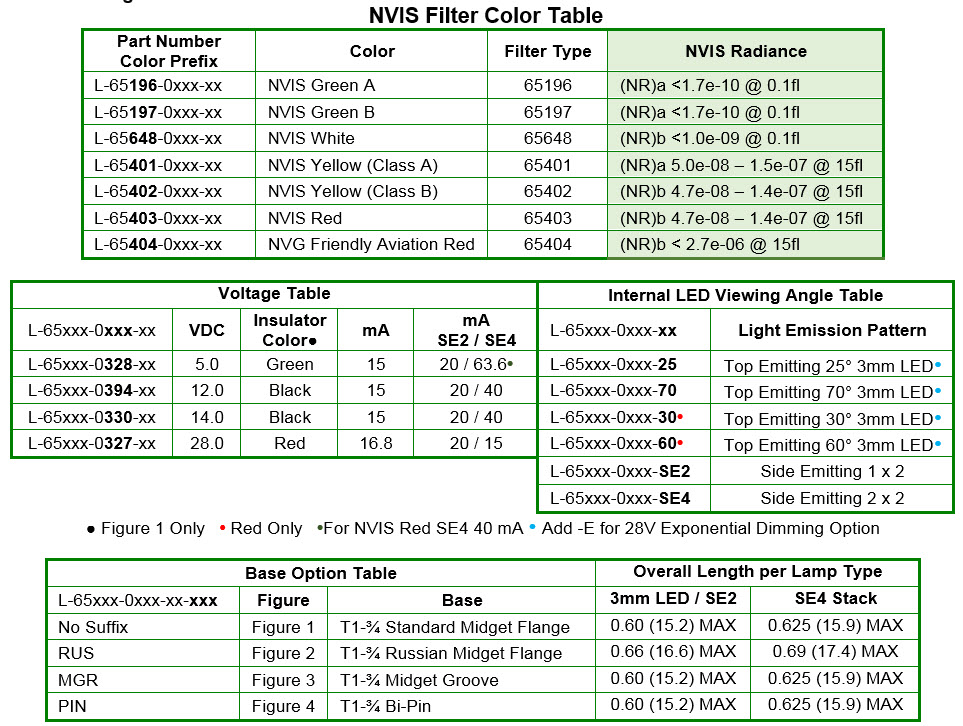

Ordering Information

L-65196-0327-25 (Figure 1) is a 28V T-1 ¾ NVIS Green A Class A, 25° Top Emitting LED Midget Flange Lamp.

Figure 1 and 3 only, add “-NM” for non-magnetic midget flange base L-65196-0327-25-NM.

L-65196-0327-25-RUS (Figure 2) is a 28V T-1 ¾ NVIS Green A Class A, 25° Top Emitting LED Russian Midget Flange Lamp.

L-65196-0327-25-MGR (Figure 3) is a 28V T-1 ¾ NVIS Green A Class A, 25° Top Emitting LED Midget Groove Lamp.

L-65196-0327-25-PIN (Figure 4) is a 28V T-1 ¾ NVIS Green A Class A, 25° Top Emitting LED Bi-Pin Lamp
